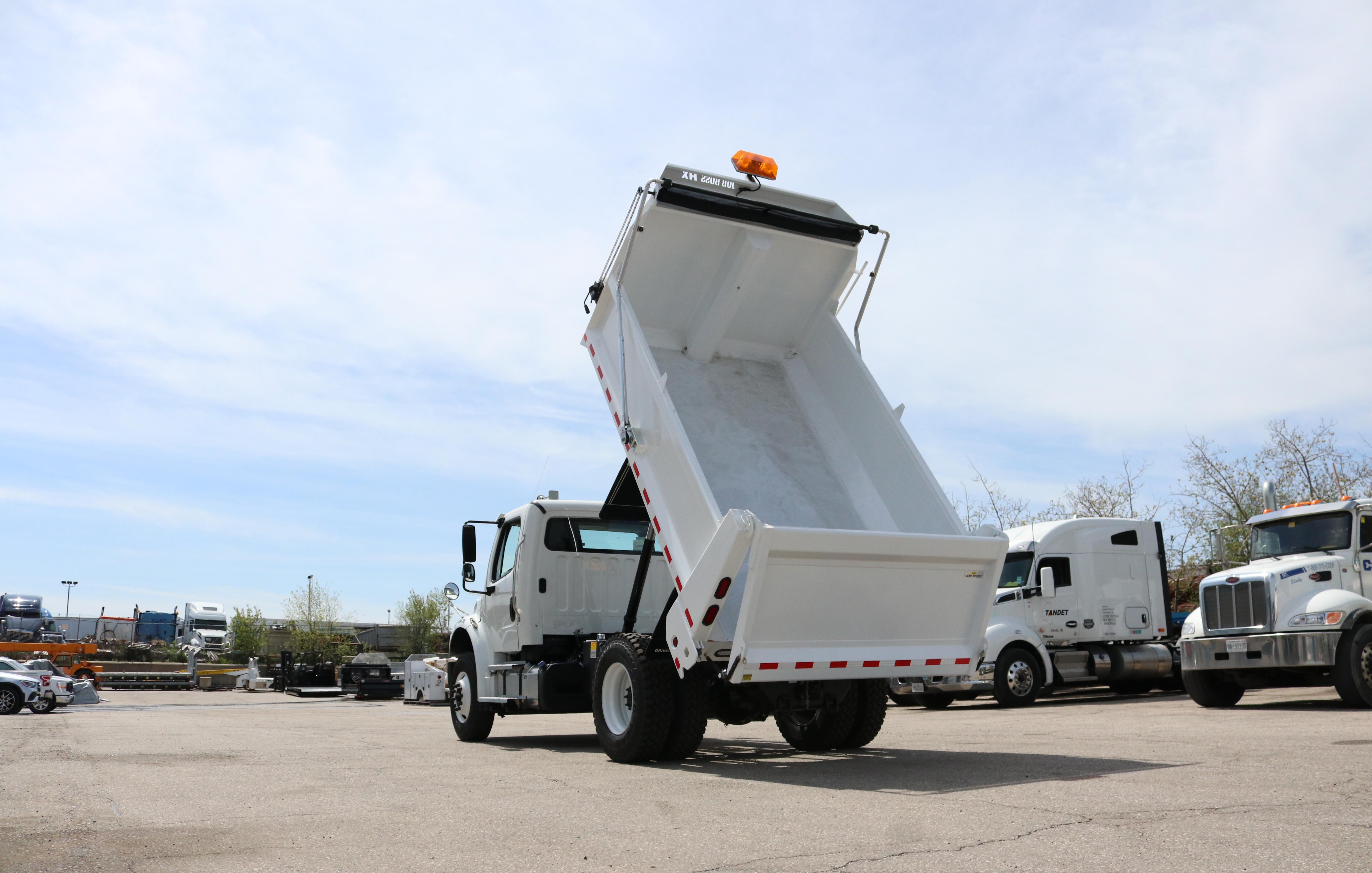

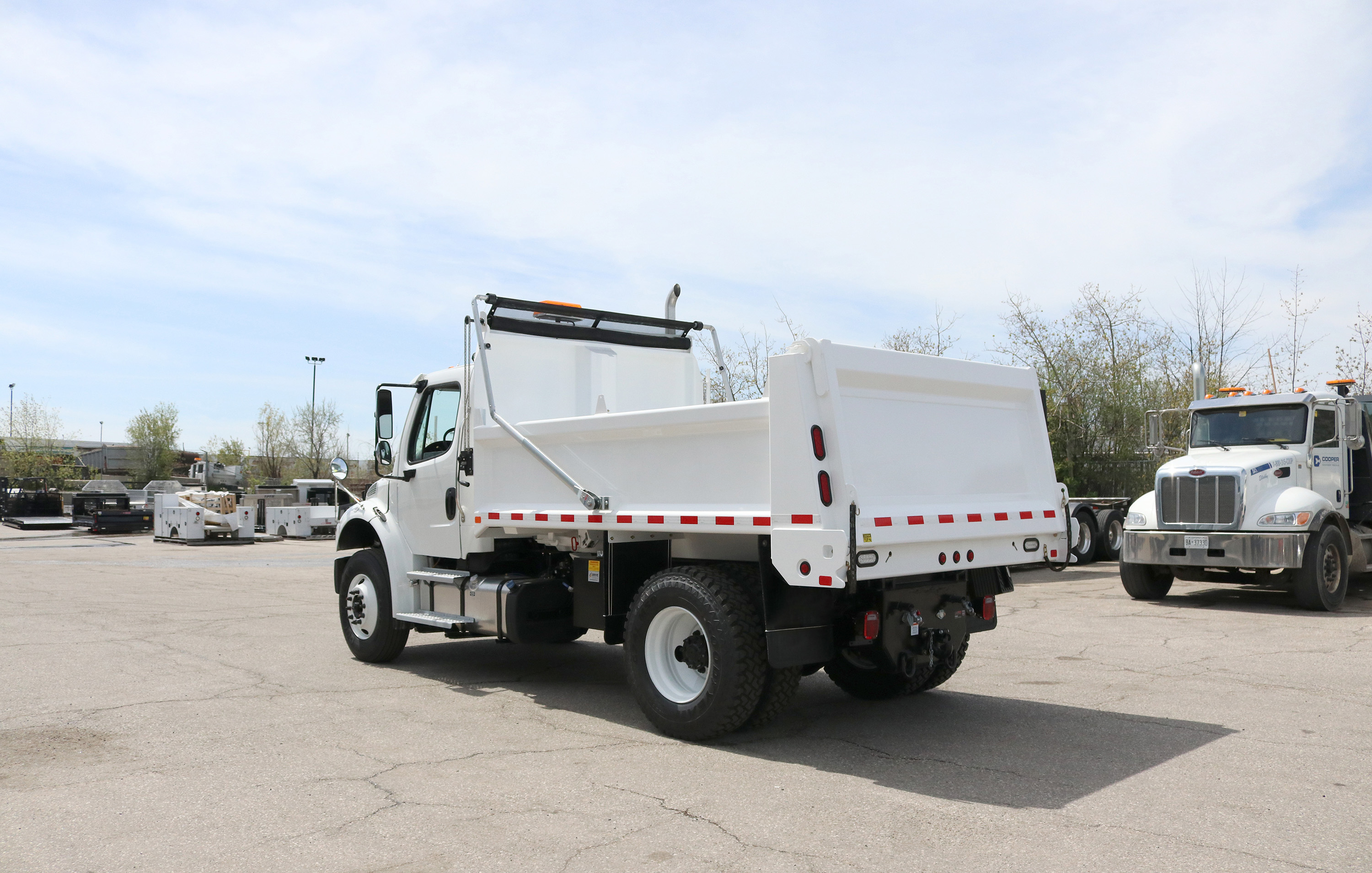

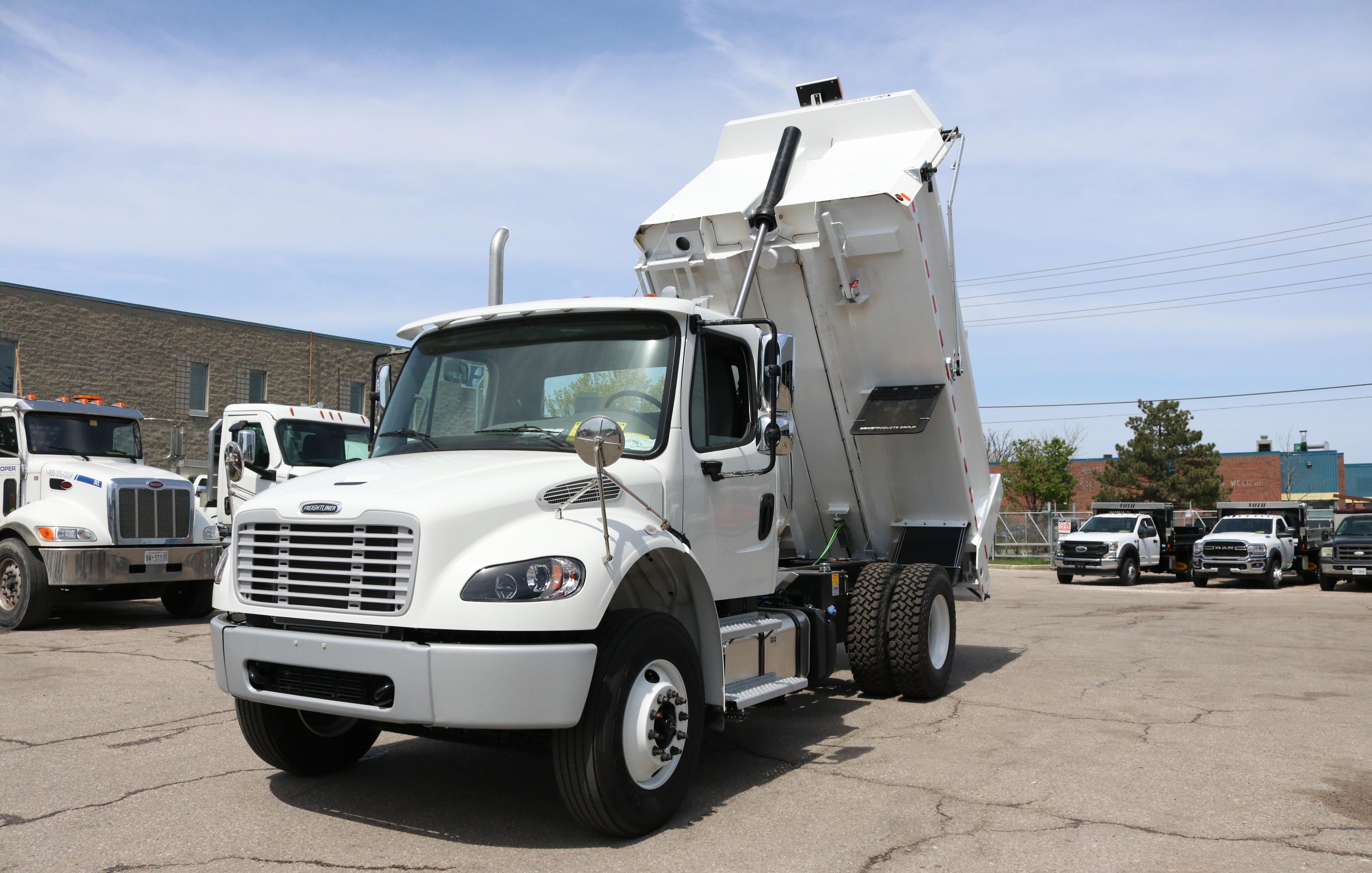

12'3" HX Body
The Unibody HX is a contractor-grade dump body engineered for heavy-duty hauling applications. It is constructed using industry-renowned HARDOX 500 and HARDOX 450 abrasion-resistant steel across critical structural components, including the sides, tailgate, headboard, and floor. The integrated unibody design delivers a streamlined appearance while maximizing structural integrity, durability, and operational efficiency during high impact dumping operations.
View All(4)
Product Details
| S1123-HX001-WHITE-VTB | |
|---|---|
| Length | 12'3" |
| Recommended CA | 106" CA |
| Headboard Height | 68" |
| Side Height | 30" |
| Cylinder Capacity | 20 Ton Mailhot |
| Tailgate Height Options | 42" (Air Latched) |
| Side Material | 3/16" HARDOX 500 Tuff |
| Tailgate Material | 3/16" HARDOX 500 Tuff |
| Headboard Material | 1/8” HARDOX 450 |
| Floor Material | 3/16” HARDOX 500 Tuff |
| Rear Lighting | LED 4 - STT, 2 Reverse, 5 Rear Markers, 2 Front Markers |
| Weight (lbs) | 3800 |

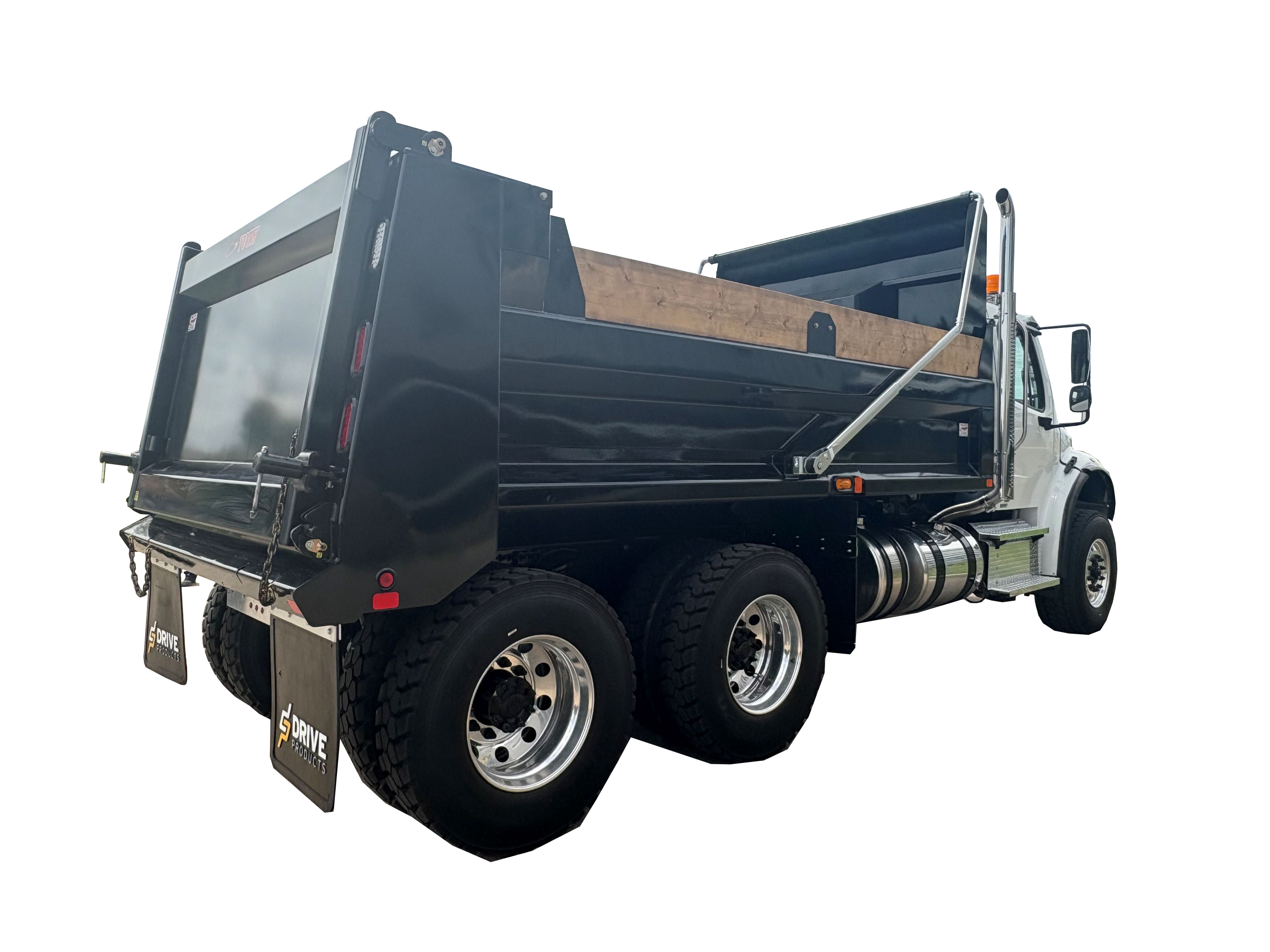

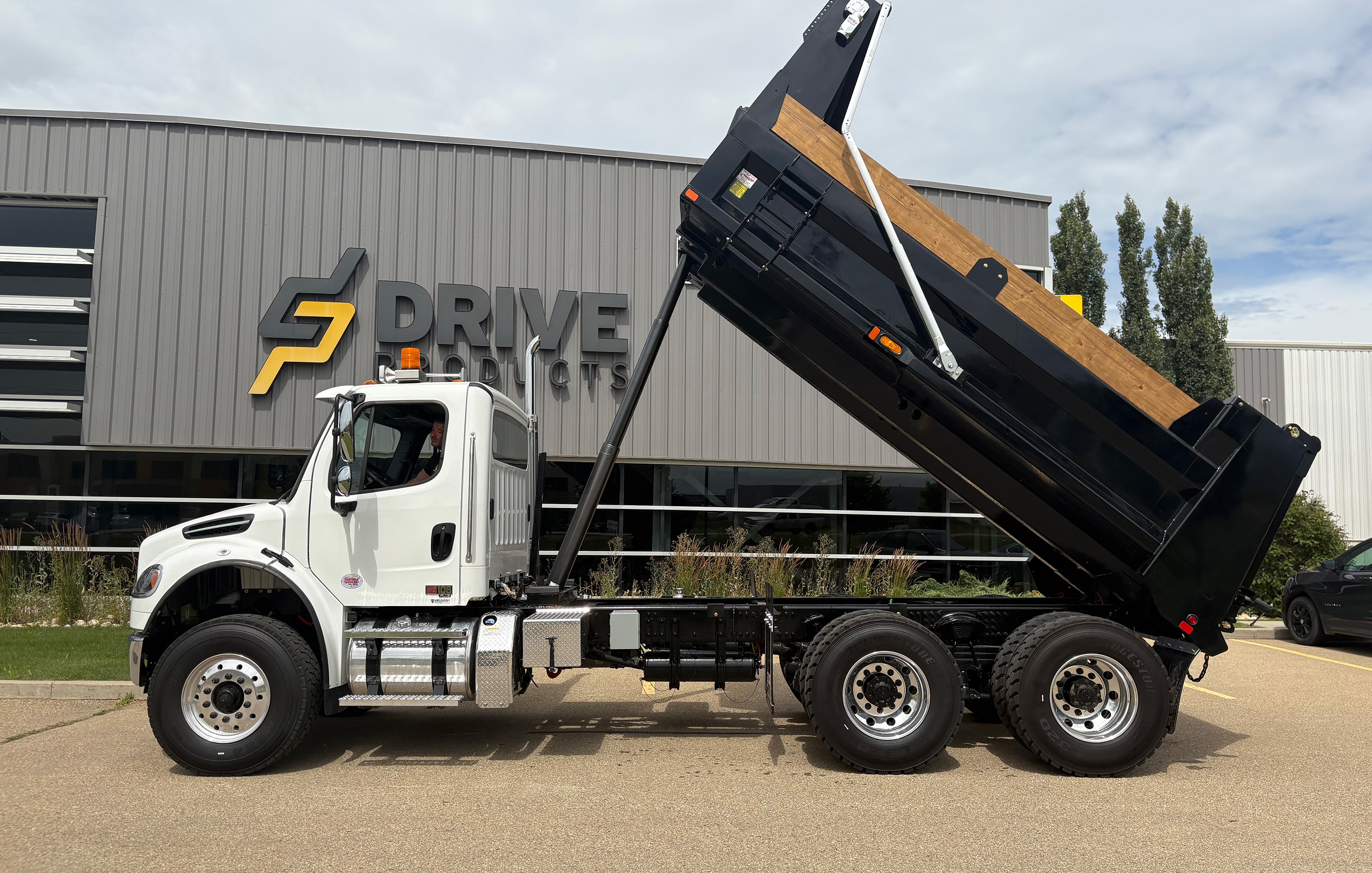

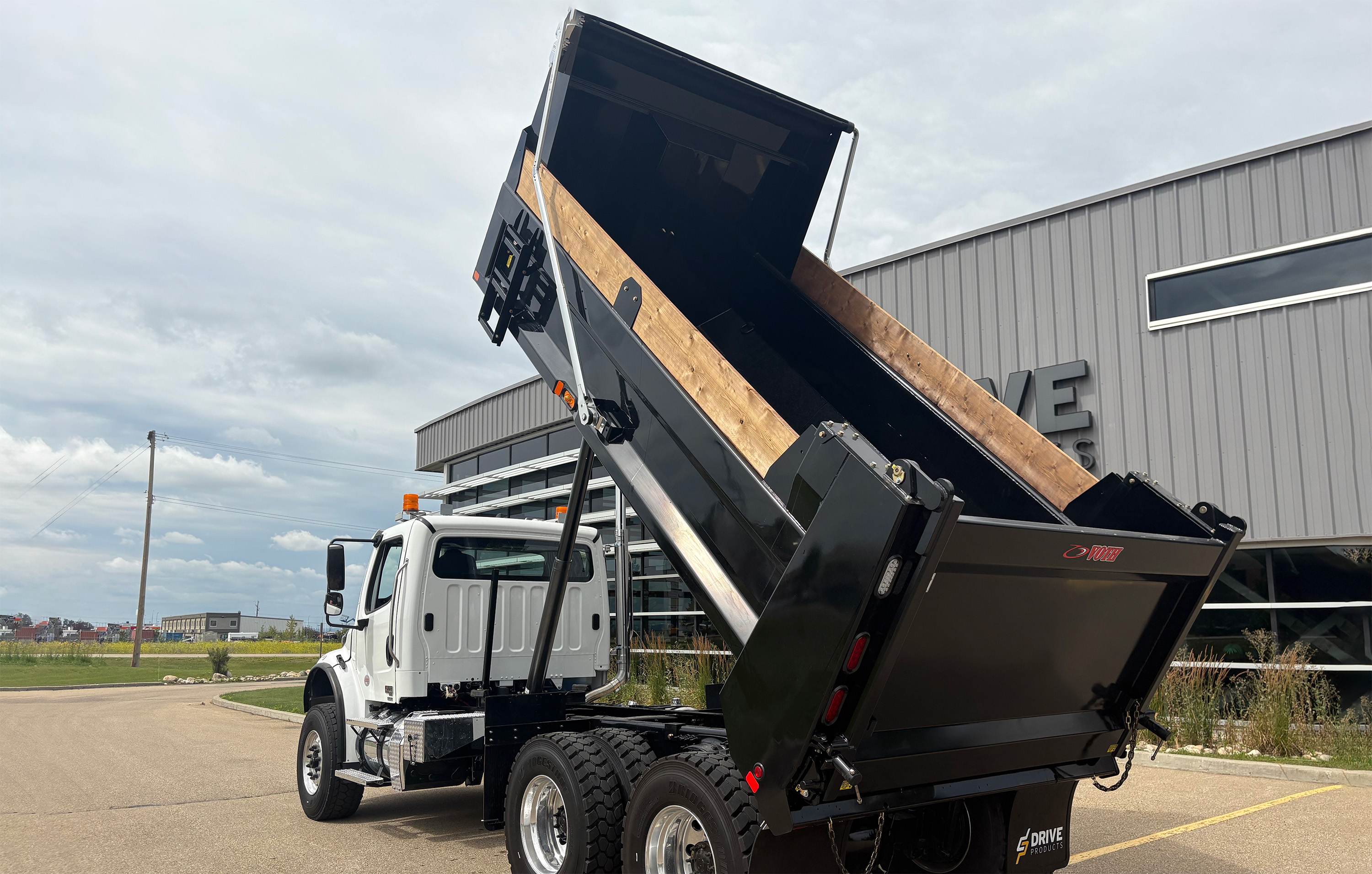

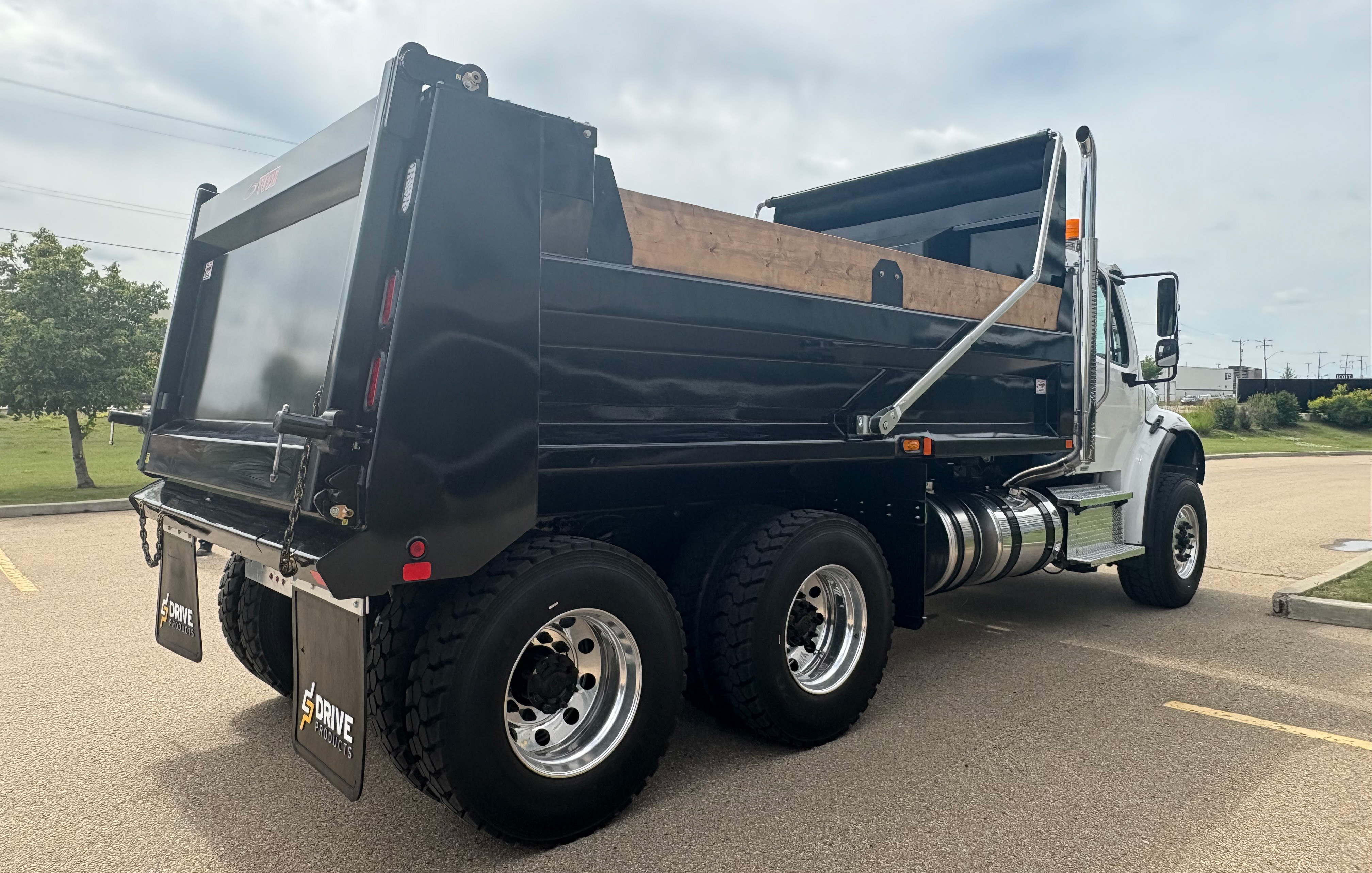

15'6" HX Body
The Unibody HX is a contractor-grade dump body engineered for heavy-duty hauling applications. It is constructed using industry-renowned AR500 and AR450 abrasion-resistant steel across critical structural components, including the sides, tailgate, headboard, and floor. The integrated unibody design delivers a streamlined appearance while maximizing structural integrity, durability, and operational efficiency during high impact dumping operations.
View All(4)
Product Details
| S1156-H1-B1A4A-IB-BA5-1011-DPM | S1156-H1-B9D9A-EE-EA5-2011-DPM | |
|---|---|---|
| Length | 15'6" | 15'6" |
| Recommended CA | 126”-135” CA | 126”-135” CA |
| Headboard Height | 87" | 87" |
| Side Height | 30" | 42" |
| Cylinder Capacity | 30 Ton Mailhot | 30 Ton Mailhot |
| Tailgate Height Options | 48" Angled (Air Latched) | 60" Straight (Air Latched) |
| Side Material | 1/8" AR450 | 5/32" AR450 |
| Tailgate Material | 3/16" AR200 | 3/16" AR450 |
| Headboard Material | 1/8" AR200 | 5/32" AR450 |
| Floor Material | 3/16" AR200 | 3/16" AR450 |
| Rear Lighting | LED 4 - STT, 2 Reverse, 5 Rear Markers, 2 Front Markers | LED 4 - STT, 2 Reverse, 5 Rear Markers, 2 Front Markers |
| Weight (lbs) | TBD | TBD |
20'6" HX Body
The Unibody HX is a contractor-grade dump body engineered for heavy-duty hauling applications. It is constructed using industry-renowned AR500 and AR450 abrasion-resistant steel across critical structural components, including the sides, tailgate, headboard, and floor. The integrated unibody design delivers a streamlined appearance while maximizing structural integrity, durability, and operational efficiency during high impact dumping operations.
Product Details
| S1206-H1-CAGAA-FE-EA6-0011-DP | |
|---|---|
| Length | 20'6" |
| Recommended CA | 186" CA |
| Headboard Height | 87" |
| Side Height | 60" |
| Tailgate Height Options | 69" Straight (Air Latched) |
| Side Material | 5/32" AR450 |
| Tailgate Material | 3/16" AR450 |
| Floor Material | 3/16" AR450 |
| Rear Lighting | LED 4 - STT, 2 Reverse, 5 Rear Markers, 2 Front Markers |
| Weight (lbs) | TBD |
