Dump Insert

Designed for your ½, ¾, and 1-ton truck, Voth’s dumping insert is manufactured for both short and long box pickups. Take your work truck to the next level with optional adds-ons of a removable chipper hood, or mesh side extensions for year-round utility.

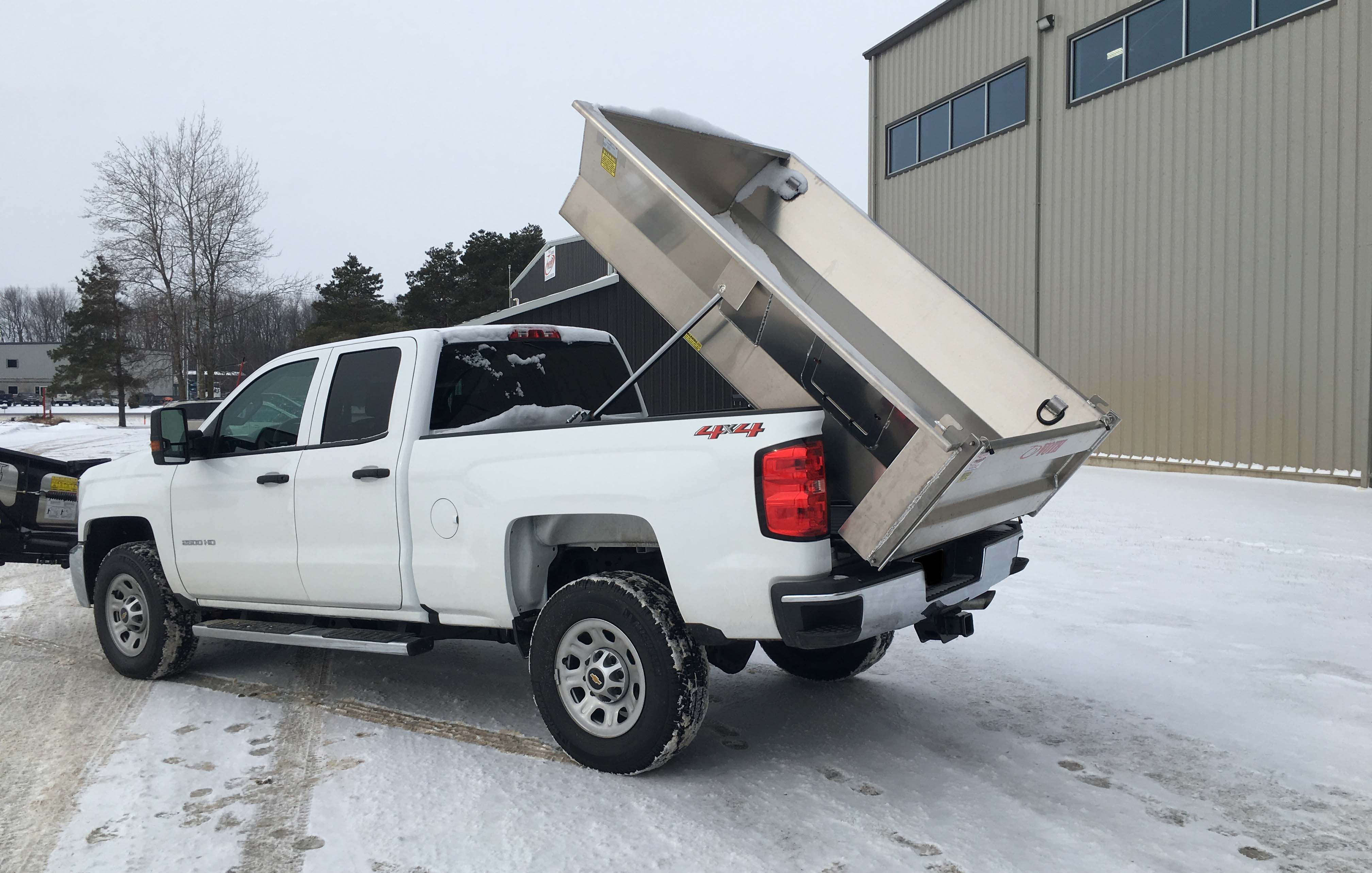

Back view of a tilted dump insert
Back view of a tilted dump insert

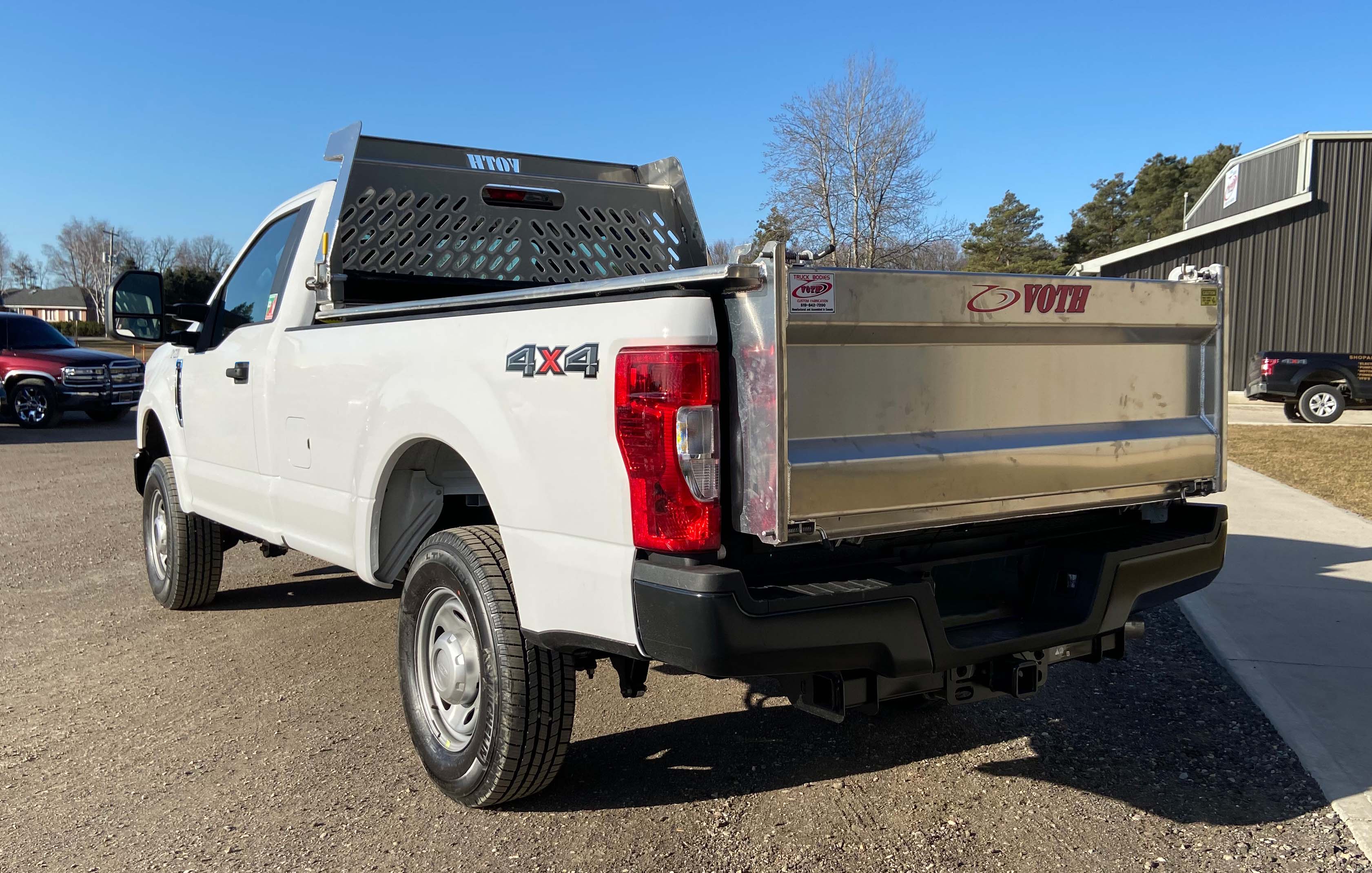

Back view of dump insert
Side view of a tilted dump insert
Side view of dump insert
Back view of dump insert
Front view of the close up of dump insert
Front view of the close up of dump insert
Back view of dump insert with a mesh side extensions
Back view of dump insert with a mesh side extensions
Back view of dump insert
Back view of a tilted dump insert
Back view of a tilted dump insert
Back view of dump insert
Side view of a tilted dump insert View All(11)
Side view of dump insert
Back view of dump insert
Front view of the close up of dump insert
Front view of the close up of dump insert
Back view of dump insert with a mesh side extensions
Back view of dump insert with a mesh side extensions

Product Details

6'6" Steel Dump Insert 8' Steel Dump Insert 6'6" Aluminum Dump Insert 8' Aluminum Dump Insert
Recommended CA 6'6" to 6'9" Pick Up Bed Length 8' Pick Up Bed Length 6'6" to 6'9" Pick Up Bed Length 8' Pick Up Bed Length
Headboard Height Options Bolt on Option Bolt on Option Bolt on Option Bolt on Option
Side Wall Height 21" 21" 21" 21"
Tailgate Height 21" 21" 21" 21"
Body Material 12 GA Steel A1011 12 GA Steel A1011 3/16" Aluminum 5052-H32 3/16" Aluminum 5052-H32
Floor Material 12 GA Steel A1011 12 GA Steel A1011 3/16" Aluminum 5052-H32 3/16" Aluminum 5052-H32
Capacity Cu Yard (Struck) 2.02 2.45 2.02 2.45
Capacity Cu Yard (Heaping) 2.82 3.55 2.82 3.55
