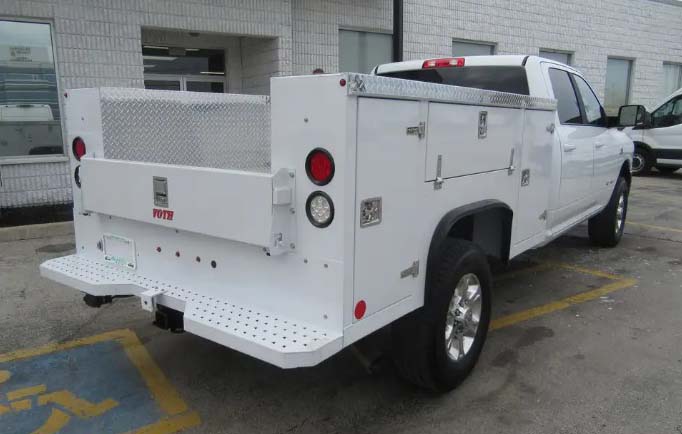

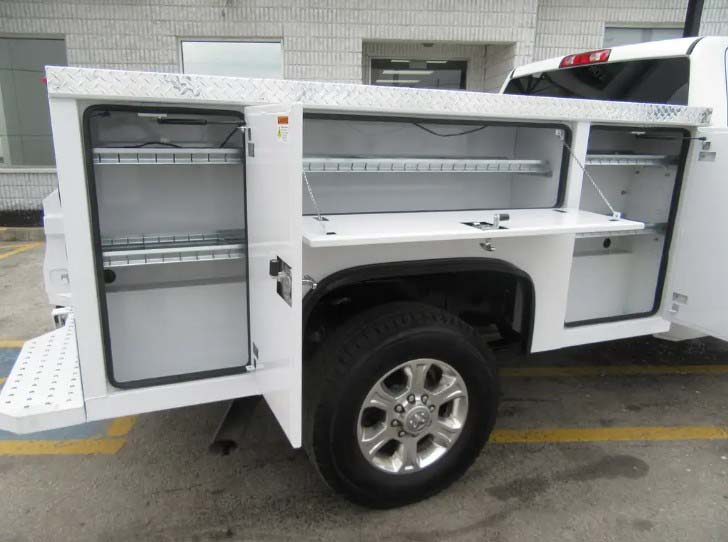

Standard
Voth’s all aluminum service body is manufactured in rugged, corrosion-resistant 5052-H32 marine grade aluminum. Heavy gauge construction provides additional strength, reducing maintenance and maintaining improved fuel efficiency and payload capacity at 45% lighter than steel.
To learn more about available sizing and view compartment layout diagrams, consult the Service Bodies Brochure.
Product Details
SBA98SRW56-A | SBA98SRW56-BB | SBA108SRW60-A | SBA108SRW60-60A | SBA108DRW60-A | SBA108DRW60-60-A | SBA108DRW60RT-A | SBA132DRW84-A | SBA132DRW84-60F-A | SBA132DRW84-60-A | |
---|---|---|---|---|---|---|---|---|---|---|
Recommended CA | 56" | 56" | 60" | 60" | 60" | 60" | 60" | 84" | 84" | 84" |
Body Length | 98.00" (8.16') | 98.00" (8.16') | 108.00" (9') | 108.00" (9') | 108.00" (9') | 108.125" (9') | 108.00" (9') | 132.00" (11') | 132.00" (11') | 132.00" (11') |
Body Width | 81.45" (6.78') | 81.45" (6.78') | 81.484" (6.79') | 81.454" (6.78') | 97.484" (8.125') | 97.5" (8.125') | 97.5" (8.125') | 97.484" (8.12') | 97.484" (8.12') | 97.484" (8.12') |
Body Height | 42.00" (3.5') | 42.00" (3.5') | 42.00" (3.5') | 60.00" (5') | 42.00" (3.5') | 60.00" (5') | 70.5" (5.875') | 42.00" (3.5') | 60.00"/42.00" (5'/3.5') | 60.00" (5') |
Body Material | 0.125" Welded 5052-H32 Aluminum | 0.125" Welded 5052-H32 Aluminum | 0.125" Welded 5052-H32 Aluminum | 0.125" Welded 5052-H32 Aluminum | 0.125" Welded 5052-H32 Aluminum | 0.125" Welded 5052-H32 Aluminum | 0.125" Welded 5052-H32 Aluminum | 0.125" Welded 5052-H32 Aluminum | 0.125" Welded 5052-H32 Aluminum | 0.125" Welded 5052-H32 Aluminum |
Compartment Size A (Red) | 21.62" x 36.31" (1.80' x 3.02') | 21.62" x 36.31" (1.80' x 3.02') | 27.62" x 36.31" (2.3' x 3.02') | 27.50" x 54.25" (2.29' x 4.52') | 27.62" x 36.31" (2.30' x 3.02') | 27.50" x 54.25" (2.29' x 4.52') | 27.50" x 36.25" (2.29' x 3.02') | 27.62" x 36.31" (2.30' x 3.02') | 27.62" x 54.31" (2.30' x 4.52') | 27.50" x 54.25" (2.29' x 4.52') |
Compartment Size B (Blue) | 42.50" x 17.68" (3.54' x 1.47') | 65.06" x 17.68" (5.42' x 1.47') | 42.50" x 17.68" (3.54' x 1.474') | 42.50" x 35.56" (3.54' x 2.96') | 42.50" x 17.68" (3.54' x 1.474') | 42.50" x 35.56" (3.54' x 2.96') | 42.50" x 17.50" (3.54' x 1.45') | 17.62" x 36.31" (1.46' x 3.02') | 17.62" x 36.31" (1.46' x 3.02') | 17.50" x 54.25" (1.45' x 4.52') |
Compartment Size C (Green) | 17.62" x 36.31" (1.46' x 3.02') | 13.93" x 17.625" (1.16' x 1.46') | 21.62" x 36.31" (1.80' x 3.02') | 21.50" x 54.25" (1.79' x 4.52') | 21.62" x 36.31" (1.80' x 3..02') | 21.50" x 54.25" (1.79' x 4.52') | 21.50" x 36.25" (1.79' x 3.02') | 42.50" x 17.68" (3.54' x 1.474') | 42.50" x 17.68" (3.54' x 1.474') | 42.50" x 35.50" (3.54' x 2.95') |
Compartment Size D (Yellow) | - | - | - | - | - | - | - | 21.62" x 36.31" (1.80' x 3.02') | 21.62" x 36.31" (1.80' x 3.02') | 21.50" x 54.25" (1.79' x 4.52') |
Walk-In Service Body
Voth’s all aluminum service body is manufactured in rugged, corrosion-resistant 5052-H32 marine grade aluminum. Heavy gauge construction provides additional strength, reducing maintenance and maintaining improved fuel efficiency and payload capacity at 45% lighter than steel.
To learn more about available sizing and view compartment layout diagrams, consult the Service Bodies Brochure.
Product Details
SBA132DRW84RT-60F-A | |
---|---|
Recommended CA | 84" CA |
Body Length | 132.00" (11') |
Body Width | 97.484" (8.12') |
Body Height | 88.625" (7.38') |
Body Material | 0.125" Welded 5052-H32 Aluminum |
Compartment Size A (Red) | 27.50" x 54.25" (2.29' x 4.52') |
Compartment Size B (Blue) | 17.50" x 36.25" (1.45' x 3.02') |
Compartment Size C (Green) | 42.50" x 17.50" (3.54' x 1.45') |
Compartment Size D (Yellow) | 21.50" x 36.25" (21.50' x 3.02') |
Mechanics & Crane Bodies
The trusted high strength performance of your standard service body is now a multi-function truck to suit your industry. Rear cabinet crane reinforcement, specialized cabinetry and a durable powder coat finish will support you wherever your work takes you.
To learn more about available sizing and view compartment layout diagrams, consult the Service Bodies Brochure.
Product Details
SBA132DRW84C/SBA132DRW84C7-A | SBA132DRW84C53K-60-A | SBA108DRW60C53K-60-A | |
---|---|---|---|
Recommended CA | 84" | 84" | 60" |
Body Length | 132.00" (11') | 132.00" (11') | 108.00" (9') |
Body Width | 95.25" (7.93') | 95.25" (7.93') | 97.5" (8.12') |
Body Height | 60.00" (5') | 60.00" (5') | 60.00" (5') |
Body Material | 0.125" Welded 5052-H32 Aluminum | 0.125" Welded 5052-H32 Aluminum | 0.125" Welded 5052-H32 Aluminum |
Compartment Size A (Red) | 27.50" x 54.25" (2.29' x 4.52') | 27.50" x 54.25" (2.29' x 4.52') | 27.50" x 54.25" (2.29' x 4.52') |
Compartment Size B (Blue) | 17.50" x 36.25" (1.45' x 3.02') | 17.50" x 54.25" (1.45' x 4.52') | 42.50" x 35.50" (3.54' x 2.95') |
Compartment Size C (Green) | 42.50" x 17.50" (3.54' x 1.45') | 42.50" x 35.50" (3.54' x 2.95') | 21.50" x 54.25" (1.79' x 4.52') |
Compartment Size D (Yellow) | 21.50" x 36.25" (1.79' x 3.02') | 21.50" x 54.25" (1.79' x 4.52') | - |

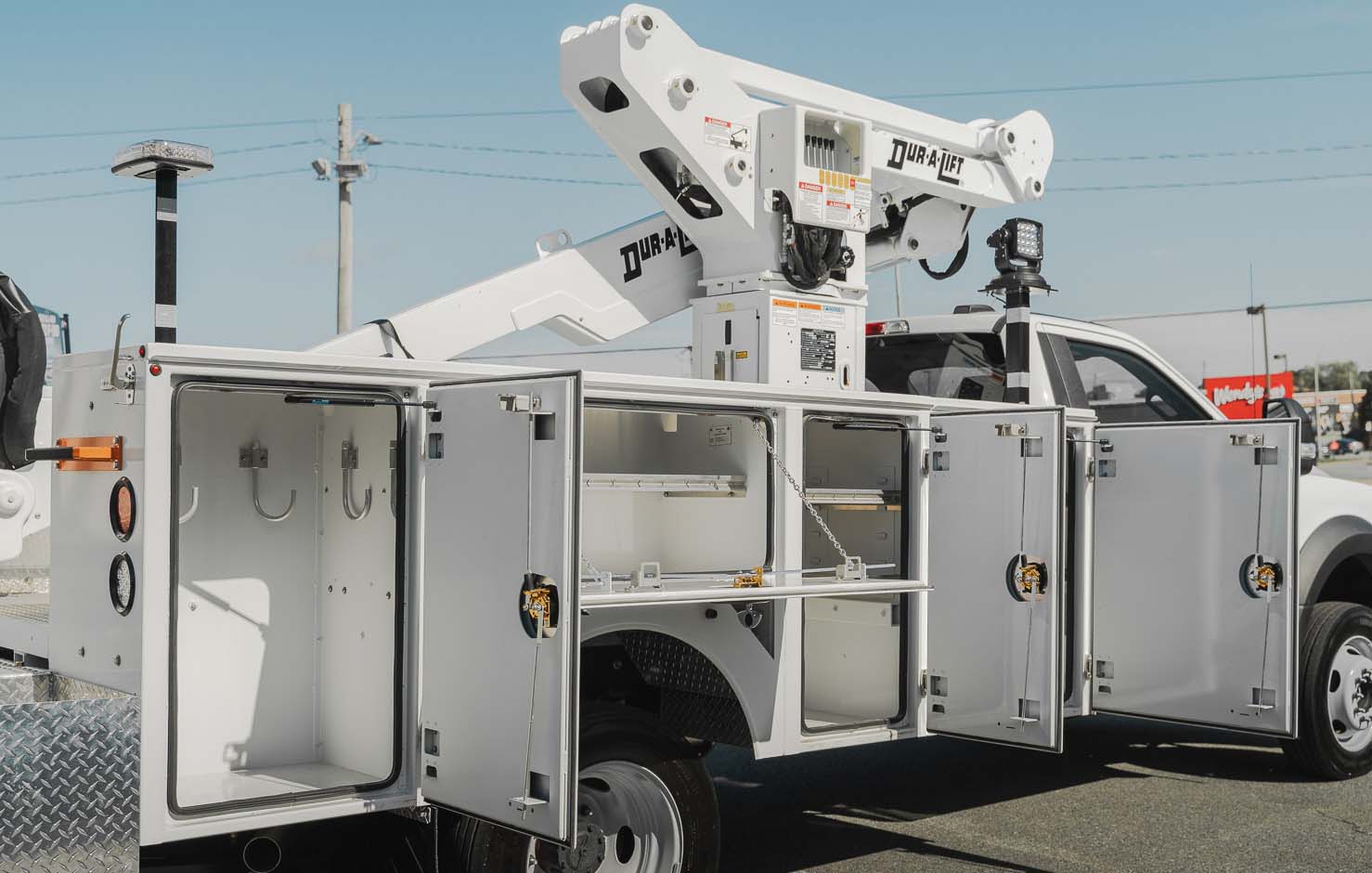

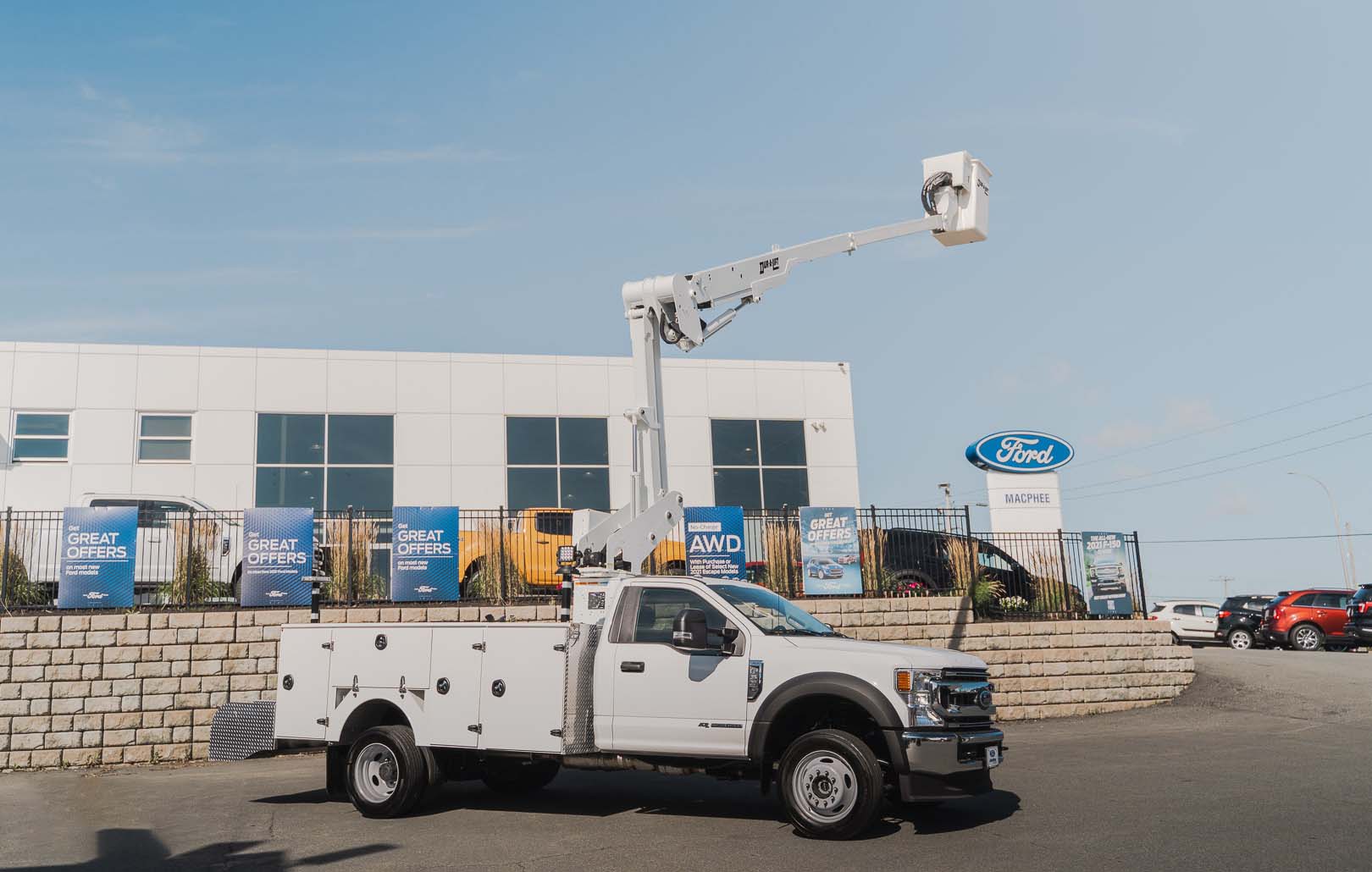

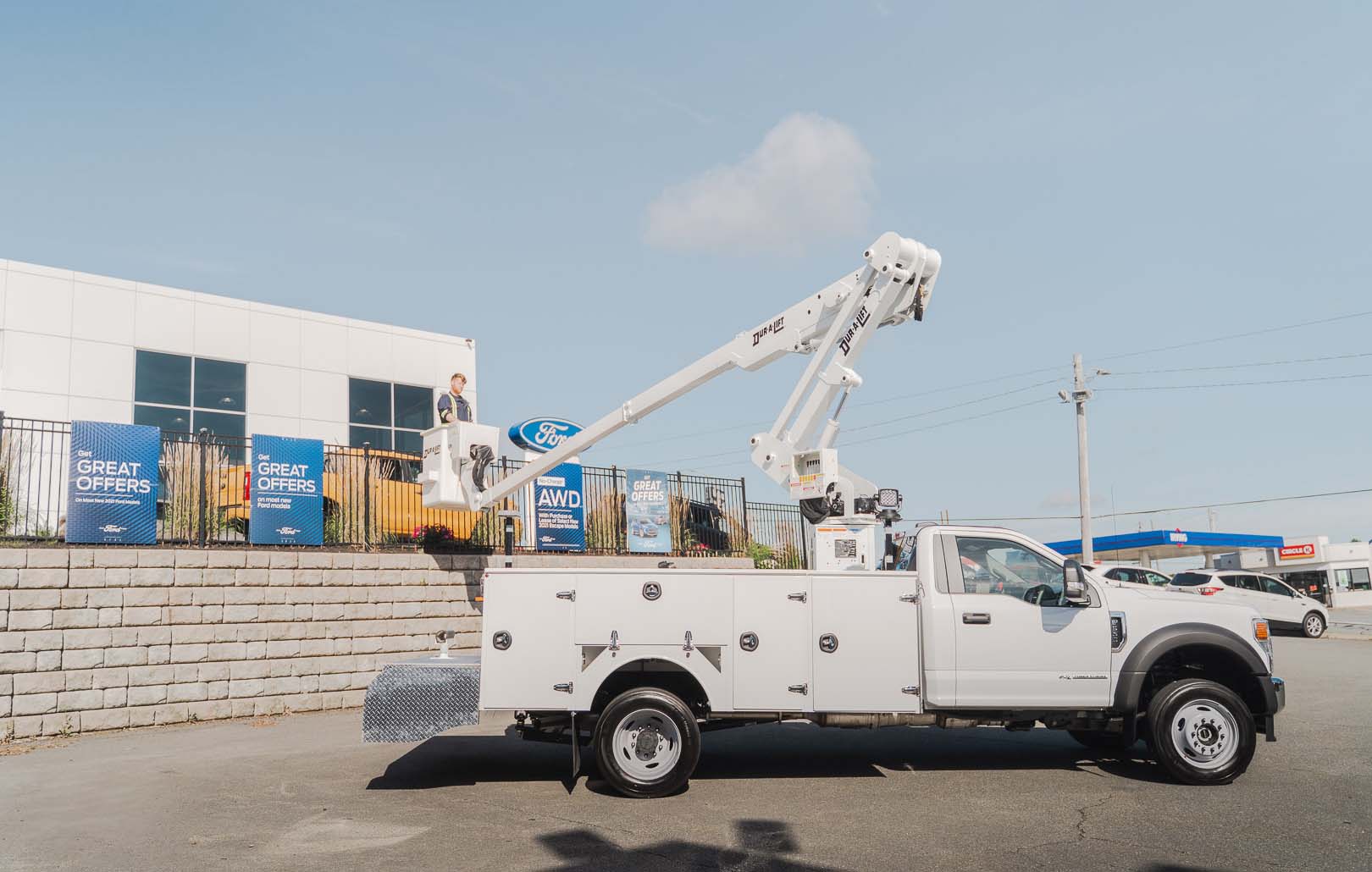

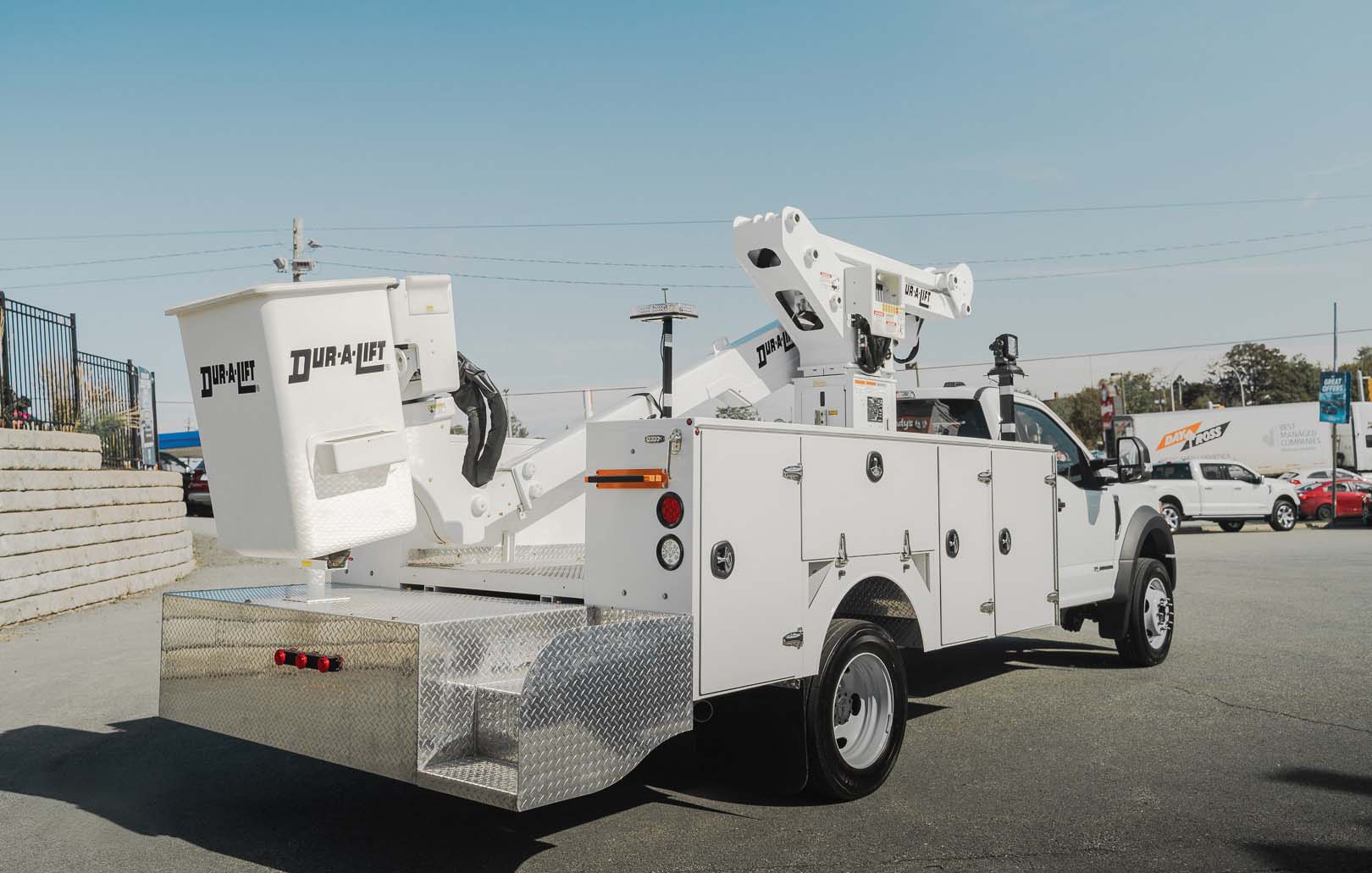

Aerial
Voth Service Bodies can be configured with re-enforced mounting pedestal and bumper work bench to easily integrate aerial equipment.
To learn more about available sizing and view compartment layout diagrams, consult the Service Bodies Brochure.
Product Details
SBA132DRW84B | |
---|---|
Body Length | 132.00" (11') |
Body Width | 95.250" |
Body Height | 42.00" (2.5') |
Body Material | 0.125" Welded 5052-H32 Aluminum |
Compartment Size A (Red) | 27.62" x 36.31" (2.3' x 3.02') |
Compartment Size B (Blue) | 17.62" x 36.31" (1.46' x 3.02') |
Compartment Size C (Green) | 42.50" x 17.68" (3.54' x 1.474') |
Compartment Size D (Yellow) | 21.62" x 36.31" (1.80' x 3.02') |
Custom Solutions
Voth Truck Bodies manufacturing is supported by a team of sales, drafting and design experts. When your work demands custom solutions, Voth has the expertise you need. Set your fleet up for success in a custom service body with the features and upfitted add-ons to support your business.
Note: Some custom options or added features are manufactured by third party vendors and are subject to availability.
