Voth Unibody
The Voth Unibody design features a smooth understructure and low mounting height. Voth’s signature design, this unibody dump is manufactured for heavy duty service, without turning your truck in to an oversized dump truck. The low mounting height allows for a low center of gravity with increased stability on the road and on the job site.
Product Details
9'9" Steel | 11'9" Steel | 12'9" Steel | 13'9" Steel | 9'9" Hybrid | 11'9" Hybrid | 12'9" Hybrid | 13'9" Hybrid | 9'9" Aluminum | 11'9" Aluminum | 12'9" Aluminum | 13'9" Aluminum | |
---|---|---|---|---|---|---|---|---|---|---|---|---|
Understructure | Unibody | Unibody | Unibody | Unibody | Unibody | Unibody | Unibody | Unibody | Unibody | Unibody | Unibody | Unibody |
Recommended CA | 60" CA | 84" CA | 108" CA | 108"/ 120" CA | 60" CA | 84" CA | 108" CA | 108"/ 120" CA | 60" CA | 84" CA | 108" CA | 108"/ 120" CA |
Headboard Height Options | 53" / 60" / 66" / 72" | 53" / 60" / 66" / 72" | 53" / 60" / 66" / 72" | 53" / 60" / 66" / 72" | 53" / 60" / 66" / 72" | 53" / 60" / 66" / 72" | 53" / 60" / 66" / 72" | 53" / 60" / 66" / 72" | 53" / 60" / 66" / 72" | 53" / 60" / 66" / 72" | 53" / 60" / 66" / 72" | 53" / 60" / 66" / 72" |
Folding Side Wall Height Options | 14" | 14" | 14" / 20" | 14" / 20" | 14" / 20" | 14" / 20" | 14" / 20" | 14" / 20" | 14" / 20" | 14" / 20" | 14" / 20" | 14" / 20" |
Folding Sides | Single | Single | Split | Split | Single | Single | Single | Split | Single | Single | Single | Split |
Tailgate Height Options | 20" / 26" | 20" / 26" | 20" / 26" | 20" / 26" | 20" / 26" | 20" / 26" | 20" / 26" | 20" / 26" | 20" / 26" | 20" / 26" | 20" / 26" | 20" / 26" |
Folding Side Material | 10 & 12 GA Steel | 10 & 12 GA Steel | 10 & 12 GA Steel | 10 & 12 GA Steel | 3/16" Aluminum 5052-H32 | 3/16" Aluminum 5052-H32 | 3/16" Aluminum 5052-H32 | 3/16" Aluminum 5052-H32 | 3/16" Aluminum 5052-H32 | 3/16" Aluminum 5052-H32 | 3/16" Aluminum 5052-H32 | 3/16" Aluminum 5052-H32 |
Tailgate Material | 10 & 12 GA Steel | 10 & 12 GA Steel | 10 & 12 GA Steel | 10 & 12 GA Steel | 3/16" Aluminum 5052-H32 | 3/16" Aluminum 5052-H32 | 3/16" Aluminum 5052-H32 | 3/16" Aluminum 5052-H32 | 3/16" Aluminum 5052-H32 | 3/16" Aluminum 5052-H32 | 3/16" Aluminum 5052-H32 | 3/16" Aluminum 5052-H32 |
Headboard Material | 10 GA Steel 44/50W | 10 GA Steel 44/50W | 10 GA Steel 44/50W | 10 GA Steel 44/50W | 10 GA Steel 44/50W | 10 GA Steel 44/50W | 10 GA Steel 44/50W | 10 GA Steel 44/50W | 3/16" Aluminum 5052-H32 | 3/16" Aluminum 5052-H32 | 3/16" Aluminum 5052-H32 | 3/16" Aluminum 5052-H32 |
Floor Material | 3/16" Steel 44/50W | 3/16" Steel 44/50W | 3/16" Steel 44/50W | 3/16" Steel 44/50W | 3/16" Steel 44/50W | 3/16" Steel 44/50W | 3/16" Steel 44/50W | 3/16" Steel 44/50W | 1/4" Aluminum 5083-H32 | 1/4" Aluminum 5083-H32 | 1/4" Aluminum 5083-H32 | 1/4" Aluminum 5083-H32 |
JOB BOSS
The Job Boss dump body is the ultimate in durability, and industrial design. Manufactured using high strength steel alloy, the heavy-duty crossmember floor adds maximum support and resistance to twisting and distortion from weight loading.
Product Details
9'4" Steel JOB BOSS | 11'4" Steel JOB BOSS | 9'4" Aluminum JOB BOSS | 11'4" Aluminum JOB BOSS | |
---|---|---|---|---|
Understructure | Crossmembers | Crossmembers | Crossmembers | Crossmembers |
Recommended CA | 60" CA | 84" CA | 60" CA | 84" CA |
Headboard Height Options | 55" | 55" | 55" | 55" |
Folding Side Wall Height Options | 15" | 15" | 15" | 15" |
Folding Sides | Single | Single | Single | Single |
Tailgate Height Options | 21" | 21" | 21" | 21" |
Folding Side Material | 10 GA Steel 44/50W | 10 GA Steel 44/50W | 3/16" Aluminum 5052 H32 | 3/16" Aluminum 5052 H32 |
Tailgate Material | 10 GA Steel 44/50W | 10 GA Steel 44/50W | 3/16" Aluminum 5052 H32 | 3/16" Aluminum 5052 H32 |
Headboard Material | 10 GA Steel 44/50W | 10 GA Steel 44/50W | 3/16" Aluminum 5052 H32 | 3/16" Aluminum 5052 H32 |
Floor Material | 10 GA Steel 44/50W | 10 GA Steel 44/50W | 1/4" Aluminum 5083 H32 | 1/4" Aluminum 5083 H32 |

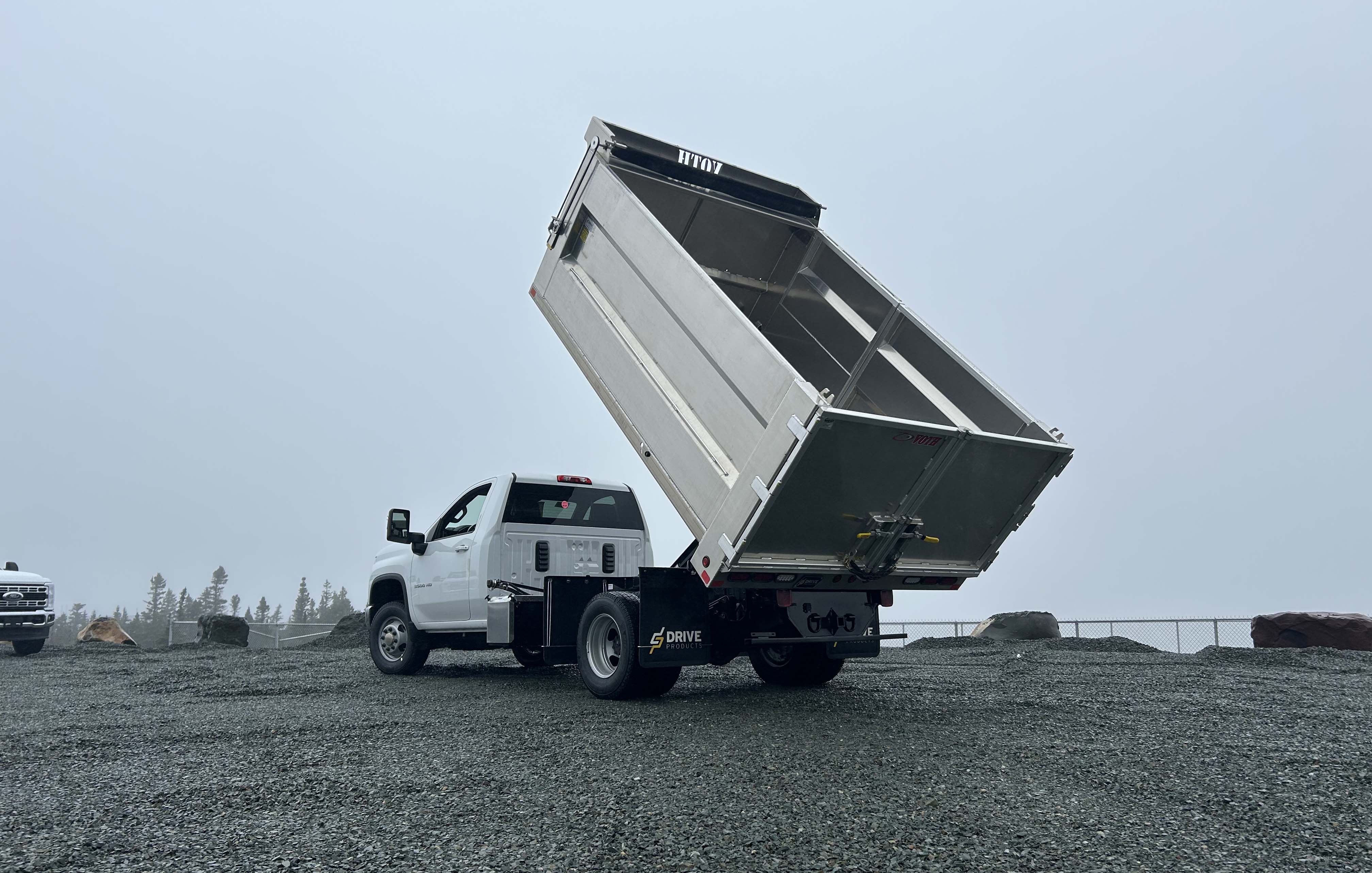

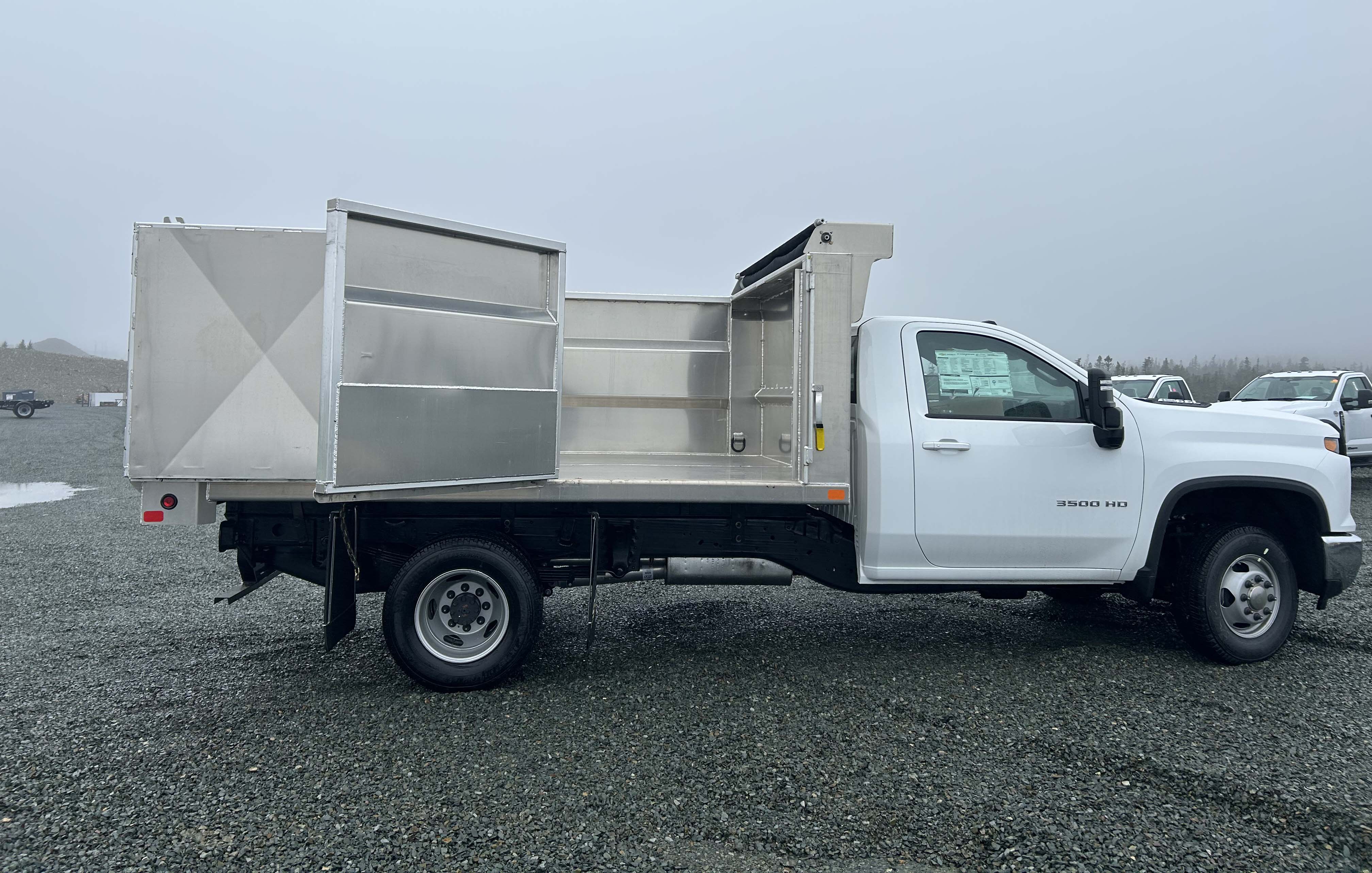

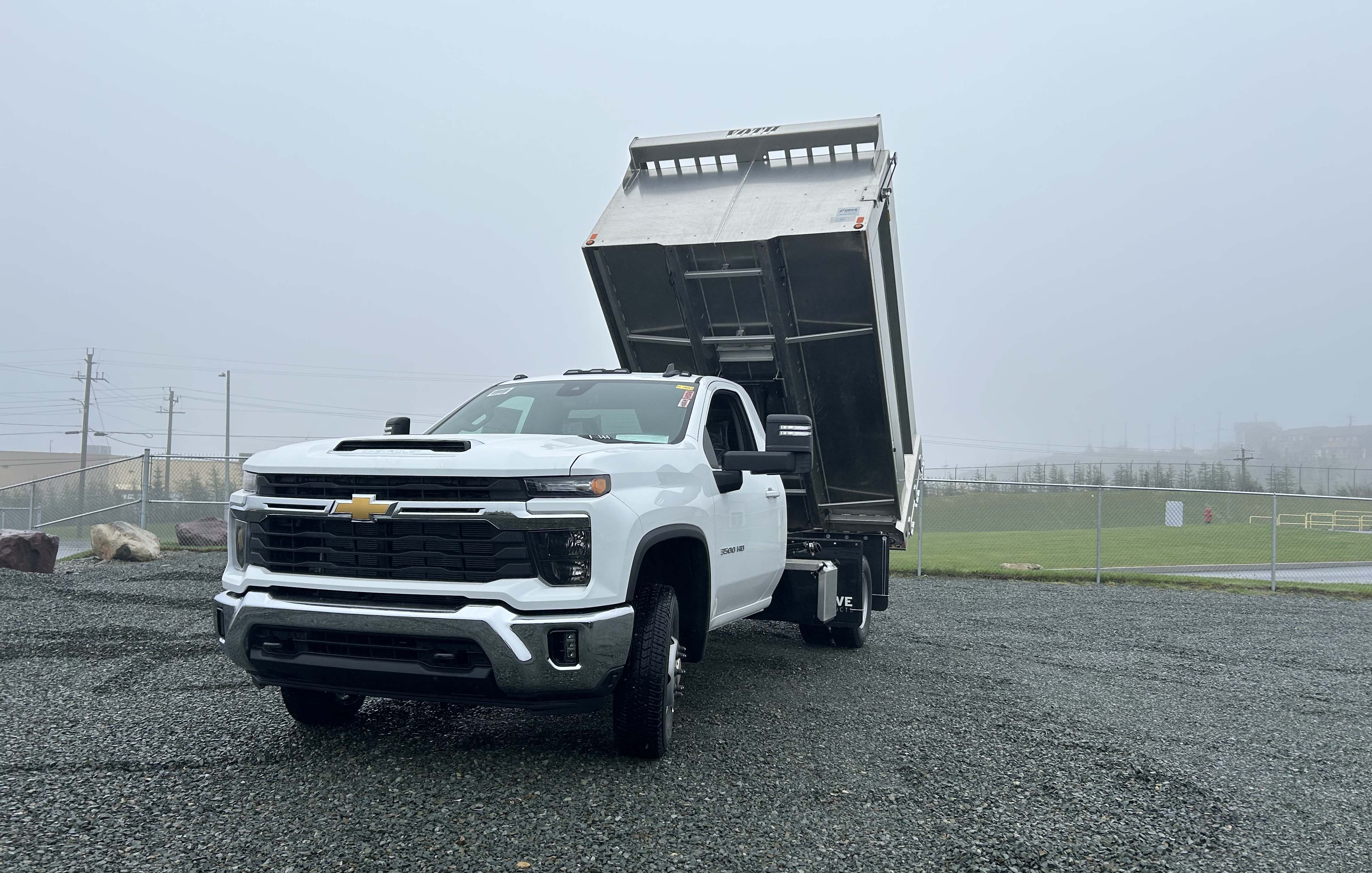

US Landscape Body
The US Landscape Body, featuring the Voth Unibody design, is known for its high sides offering more cubic space for hauling materials. To enhance the functionality, it comes with rear barn doors for easy loading and unloading, as well as a side swing access door for quick access inside the body. This specific design has gained significant attention and appreciation from our southern neighbours, impressing them with its utility.
Product Details
9'9" Steel | 11'9" Steel | 12'9" Steel | 13'9" Steel | 9'9" Aluminum | 11'9" Aluminum | 12'9" Aluminum | 13'9" Aluminum | |
---|---|---|---|---|---|---|---|---|
Understructure | Unibody | Unibody | Unibody | Unibody | Unibody | Unibody | Unibody | Unibody |
Recommended CA | 60" CA | 84" CA | 108" CA | 108" / 120" CA | 60" CA | 84" CA | 108" CA | 108" / 120" CA |
Headboard Height | 48" (+ cabshield) | 48" (+ cabshield) | 48" (+ cabshield) | 48" (+ cabshield) | 48" (+ cabshield) | 48" (+ cabshield) | 48" (+ cabshield) | 48" (+ cabshield) |
Side Height | 48" | 48" | 48" | 48" | 48" | 48" | 48" | 48" |
Side Style | Fixed Side (Driver) & Swing Door (Passenger) | Fixed Side (Driver) & Swing Door (Passenger) | Fixed Side (Driver) & Swing Door (Passenger) | Fixed Side (Driver) & Swing Door (Passenger) | Fixed Side (Driver) & Swing Door (Passenger) | Fixed Side (Driver) & Swing Door (Passenger) | Fixed Side (Driver) & Swing Door (Passenger) | Fixed Side (Driver) & Swing Door (Passenger) |
Barn Door Height | 48" | 48" | 48" | 48" | 48" | 48" | 48" | 48" |
Side Material | 10 GA Steel 44/50W | 10 GA Steel 44/50W | 10 GA Steel 44/50W | 10 GA Steel 44/50W | 3/16" Aluminum 5052-H32 | 3/16" Aluminum 5052-H32 | 3/16" Aluminum 5052-H32 | 3/16" Aluminum 5052-H32 |
Tailgate Material | 10 GA Steel 44/50W | 10 GA Steel 44/50W | 10 GA Steel 44/50W | 10 GA Steel 44/50W | 3/16" Aluminum 5052-H32 | 3/16" Aluminum 5052-H32 | 3/16" Aluminum 5052-H32 | 3/16" Aluminum 5052-H32 |
Headboard Material | 10 GA Steel 44/50W | 10 GA Steel 44/50W | 10 GA Steel 44/50W | 10 GA Steel 44/50W | 3/16" Aluminum 5052-H32 | 3/16" Aluminum 5052-H32 | 3/16" Aluminum 5052-H32 | 3/16" Aluminum 5052-H32 |
Floor Material | 3/16" Steel 44/50W | 3/16" Steel 44/50W | 3/16" Steel 44/50W | 3/16" Steel 44/50W | 1/4" Aluminum 5083-H32 | 1/4" Aluminum 5083-H32 | 1/4" Aluminum 5083-H32 | 1/4" Aluminum 5083-H32 |
Voth Unibody HX
The Unibody HX is a contractor grade dump body designed for heavy haul applications utilizing industry renowned Hardox 500 and 450 materials for manufacturing the sides, tailgate, headboard and floor. The unibody design offers a clean and sleek look while offering durability and functionality while dumping heavy materials.
Product Details
12'3" | |
---|---|
Unibody Hardox | 12'3" |
Recommended CA | 84" CA |
Headboard Height | 68" |
Side Height | 30" |
Side Style | Fixed |
Tailgate Height | 42" (Air Operated) |
Side Material | 3/16" Hardox 500 Tuff Single Wall |
Tailgate Material | 3/16" Hardox 500 Tuff Single Wall |
Headboard Material | 1/8" Hardox 450 |
Floor Material | 3/16" Hardox 500 Tuff |
